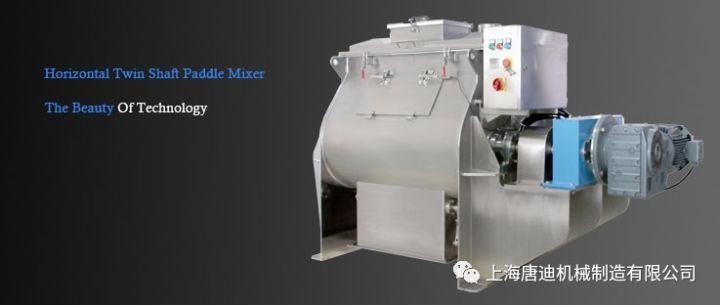

【唐迪资讯】卧式双轴桨叶混合机Horizontal Twin Shaft Paddle Mixer

-回复 -浏览
楼主 2022-01-12 09:31:19
举报 只看此人 收藏本贴 楼主

【你们正好需要,而我们刚好专业】

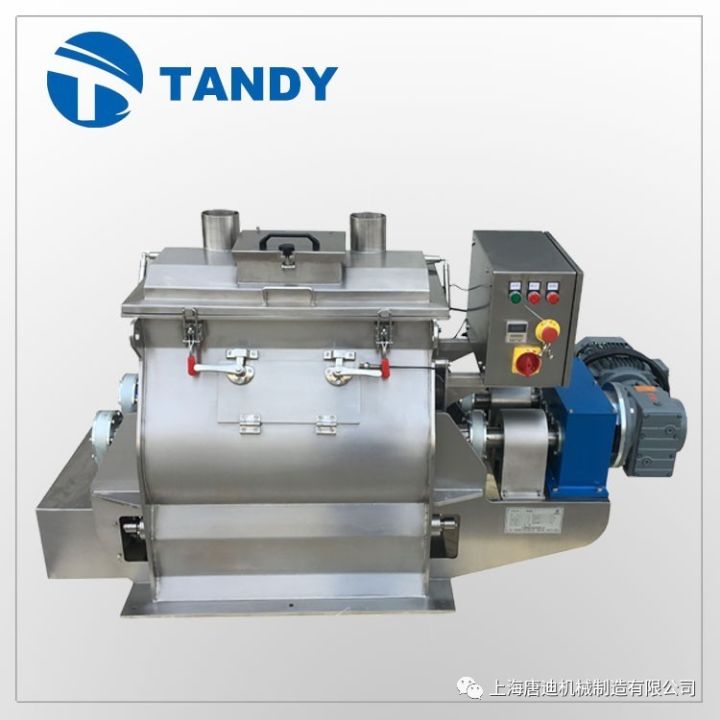

TDW无重力混合机又称桨叶混合机,适用于粉料与粉料、颗粒与颗粒、颗粒与粉料及添加少量液体的混合,广泛应用于食品、化工、干粉砂浆、农药、饲料及电池等行业。该机是高精度混合设备,对混合物适应性广,对比重、配比、粒径差异大的物料能混合均匀,对配比差异达到1:1000~10000甚至更高的物料能很好的混合。本机增加破碎装置后对颗粒物料能起到部分破碎的作用,材质可选316L,304,201,碳钢等.

主要特征

1.高效:相对反向旋转带动物料不同角度抛洒,混合时间1-3分钟


2.高均匀度:紧凑设计使桨叶旋转时充满整个仓体,混合均匀度高达99%



3.低残留:桨叶与桶体间隙2-5mm,敞开式出料口


4.零泄露:专利设计确保转轴及出料口零泄露



5.无死角:混料仓内全部满焊抛光处理,无任何螺丝螺帽等紧固件


6.美观大气:整机除轴承座,其他部分全部用不锈钢制作,精美大方

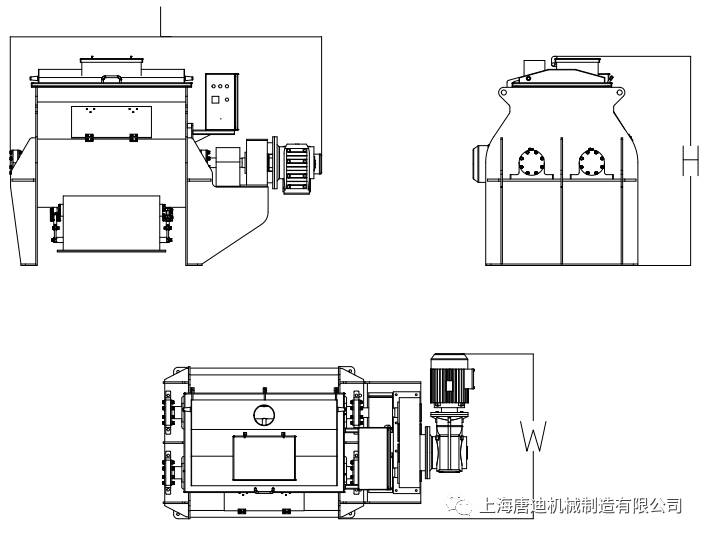

外观尺寸图



Paddle Blenders consist of a U-shapedhorizontal trough and a fabricated paddle agitator. The paddle agitatorincludes multiple paddles positioned to move materials in opposing lateraldirections and radially. The paddle design is normally applied where friablematerials are being blended and when batches as small as 15% of the totalcapacity are going to be mixed in one blender.

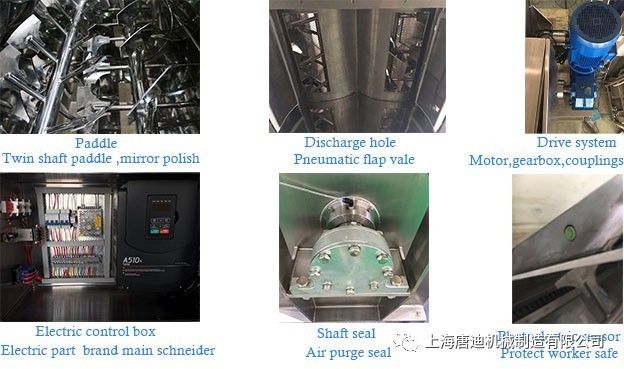

Paddle Agitators

Counter rotating ribbon/paddle agitators produce a homogenous mixing of materials in a balanced action throughout the mixer

Unsurpassed mixing efficiency for a wide variety of products

Shorter cycle times with lower co-efficient of variations

Better repeatability from batch to batch

Offers the opportunity to mix a wide variety of batch sizes and still achieve excellent mixing results

Available with a wide assortment of optional features, Paddle Blenders are easily tailored to meet many unique mixing requirements.


Our range of mixing and blending equipment enable us to be impartial in testing and recommending equipment tailored to your process Visit our manufacturing and test facility in No.100 XinYu Road,SongJinag District ,Shanghai,China.and PUT US TO THE TEST!

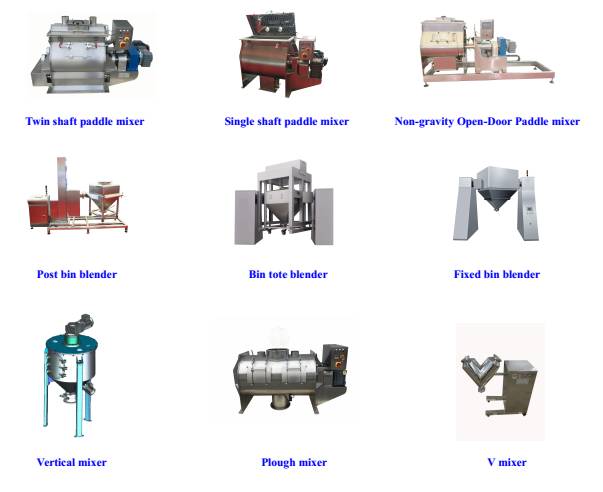

【More Choice】


上海唐迪机械制造有限公司

地址:上海市松江区欣玉路100号

网站:http://www.shtandy.com

电话:+86-21-67750139

传真:+86-21-37695289

Shanghai Tandy Machinery Manufacturing Co.,Ltd.

Address: No.100 XinYu Road,Songjiang District,Shanghai,China

Website:http://www.shtandy.com

Tel:+86-21-67750139

Fax:+86-21-37695289

E-mail:stacymiao@shtandy.com
